High-Performance Sewer Cleaning Equipment

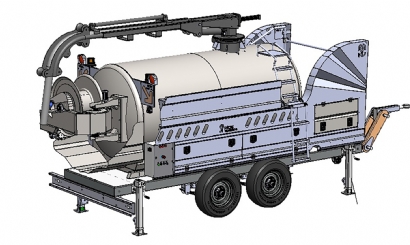

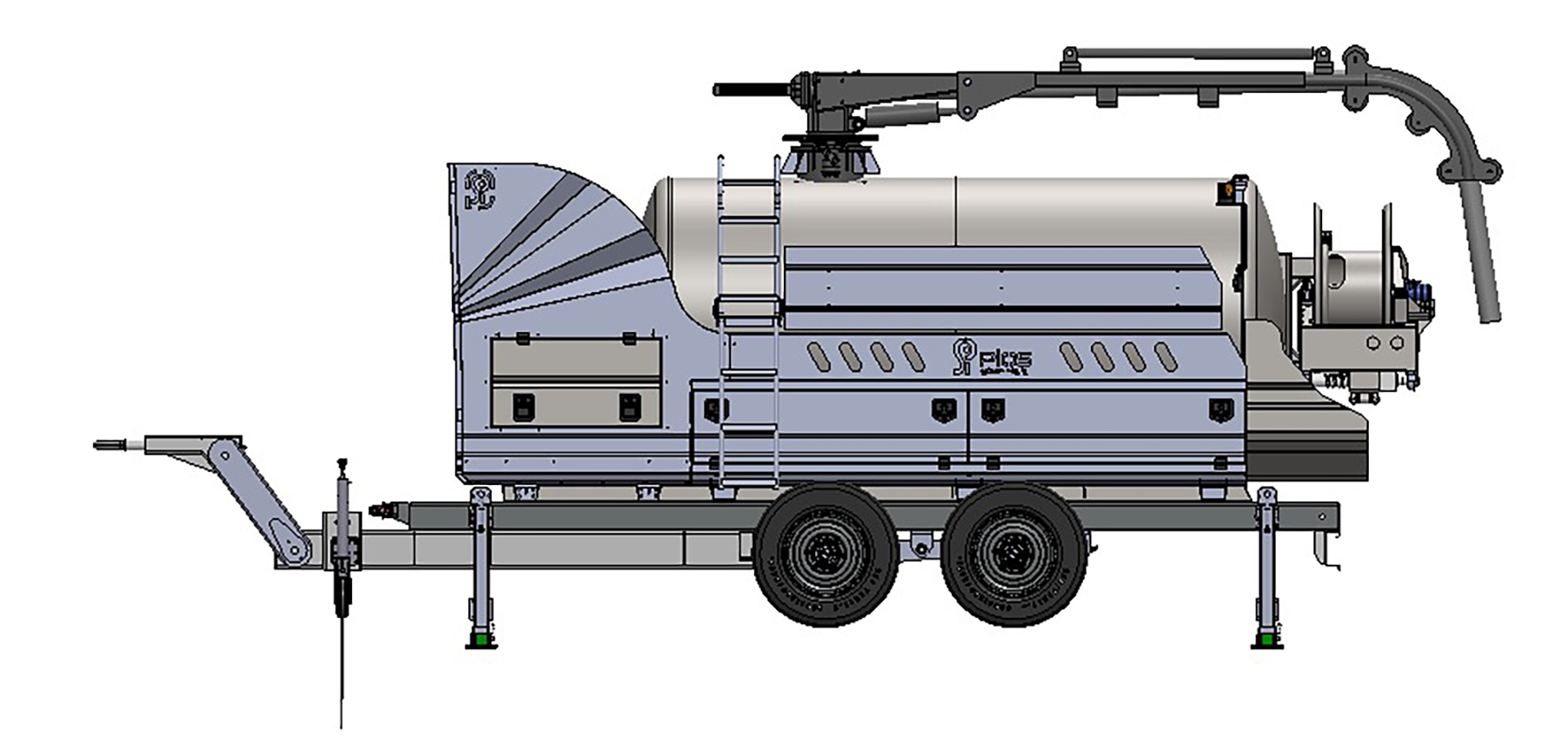

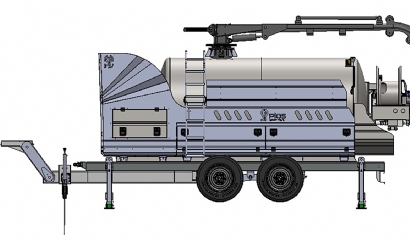

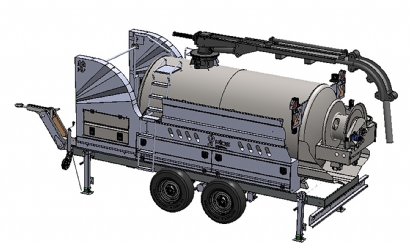

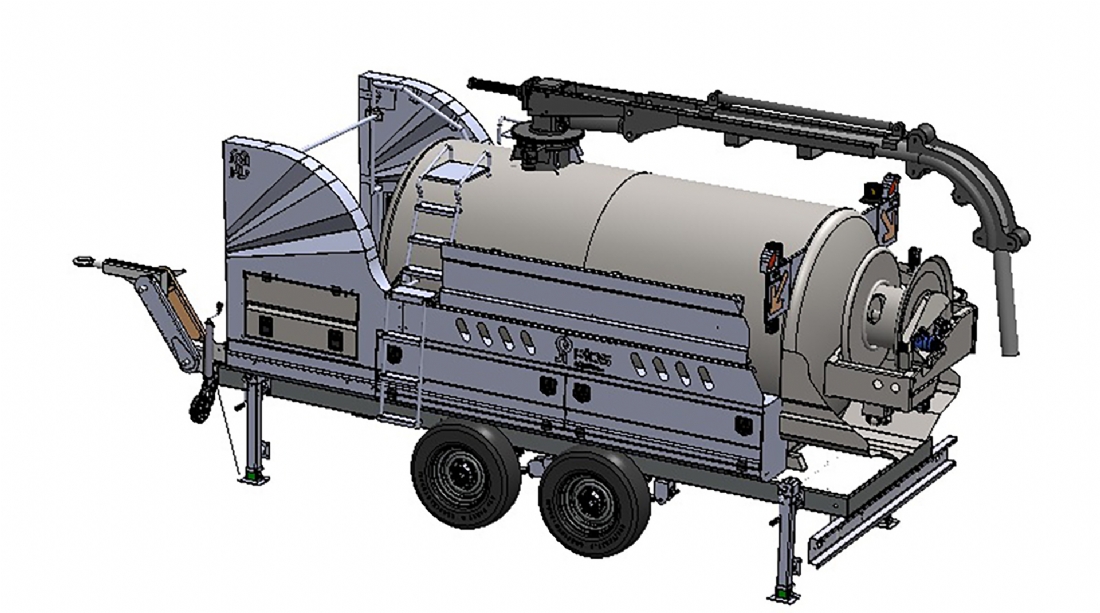

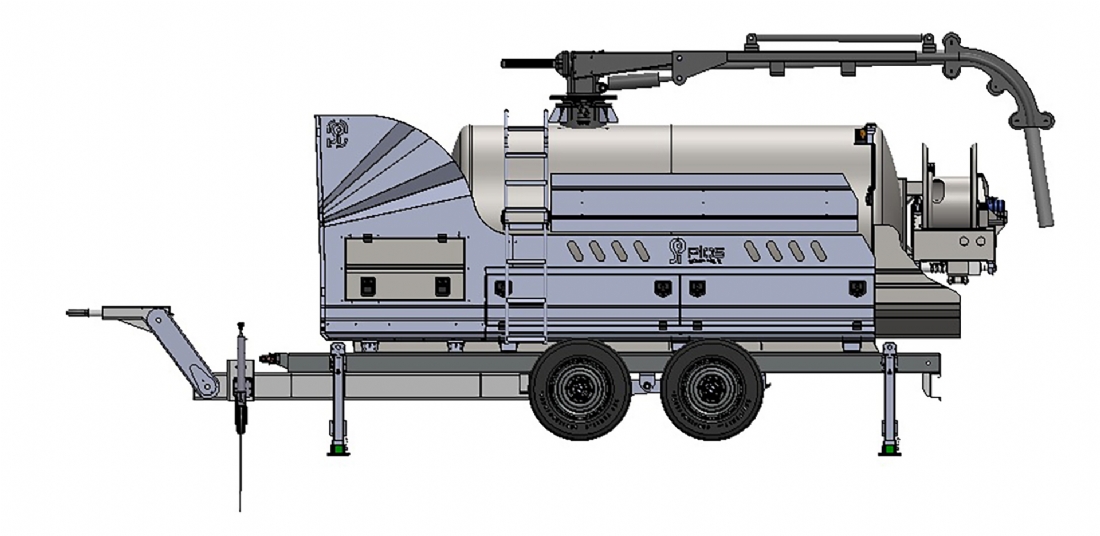

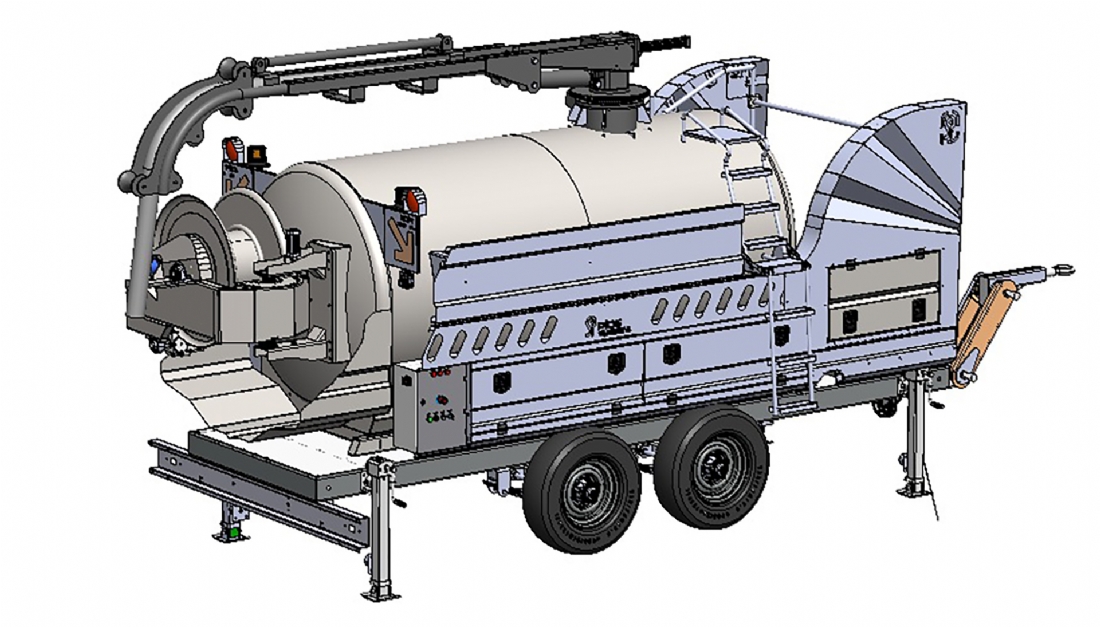

The PIOS semi-trailer mounted combination sewer cleaner is a powerful and flexible solution designed for sewer jetting, sludge removal, and wastewater maintenance.
Combining a high-pressure jetting system and a vacuum suction system, this equipment allows operators to perform cleaning and suction operations simultaneously or independently, maximizing efficiency in demanding environments.
Why Choose a Semi-Trailer Solution
- Independent from truck chassis – works with different tractor units
- Higher operational flexibility for fleets and contractors
- Dedicated auxiliary engine for consistent performance
- Ideal for municipalities, industrial services, and contractors
- Fully customized (semi-trailer, tank size, pumps, engine) to match the customer’s need.
Robust Semi-Trailer Design
- 11,000 kg carrying capacity
- Heavy-duty steel chassis construction
- Dual axle system with air brakes
- Hot-dip galvanized protection for corrosion resistance
- Road-compliant lighting and safety systems
Efficient Tank System
- Total capacity: 5,000 liters
- 3,500 L sludge tank + 1,500 L clean water tank
- Internal baffle system for stability during transport
- Hydraulic tipping system for fast discharge
- Rear anti-spill system for clean operation
Powerful Vacuum System
- Jurop HELIX vacuum pump (Italy)
- 3,060 m³/h airflow capacity
- Up to 93% vacuum performance
- Telescopic suction boom with 270° rotation
- Complete filtration and safety protection system
Perfect for septic tanks, sludge pits, and sewer extraction.
High-Pressure Jetting Performance
- HPP high-pressure pump (Italy)
- 83 L/min flow – 175 bar pressure
- 80-meter hose reel for extended reach
- Multiple nozzles for different cleaning applications
- Automatic bypass and low-water protection
Ideal for removing grease, debris, and blockages.
Independent Power System
- Perkins industrial engine (142 HP)
- Enables engine-off operation of the truck
- Reduces wear and fuel consumption of the tractor
- Ensures stable performance in all conditions
Advanced Hydraulic System
- Powers all major functions
- Working pressure up to 180 bar
- Smooth and precise operation
Smart Control & Operation
User-Friendly Control Panel:
- IP65 protected stainless steel panel
- Real-time system monitoring
- Ergonomic joystick controls
Wireless Remote Control:
- Up to 100 m range
- Full control of all functions
- Increased safety and mobility
Comprehensive Safety Features
- Overfill protection system
- Vacuum and pressure safety valves
- Emergency stop (panel + remote)
- Hydraulic stabilizers for safe tipping
- Interlock systems for secure operation
Applications
- Municipal sewer maintenance
- Industrial cleaning operations
- Septic tank and sludge removal
- Stormwater and drainage systems
- Emergency cleaning services
After-Sales Support
- Operator training and installation support
- Spare parts availability
- Remote technical assistance
- 12-month warranty
